Ever wondered what keeps your car together while cruising down the highway? That’s the job of the car frame—the skeleton that supports everything from your engine to your seats. It’s the unsung hero of vehicle design that ensures your safety while maintaining structural integrity.
We’ll jump into the industry of car frames, exploring their crucial role in automotive engineering. From traditional ladder frames to modern unibody constructions, understanding what holds your vehicle together is essential whether you’re buying a new car, maintaining your current one, or simply curious about automotive architecture. Stick with us as we break down this fundamental component that makes modern transportation possible.

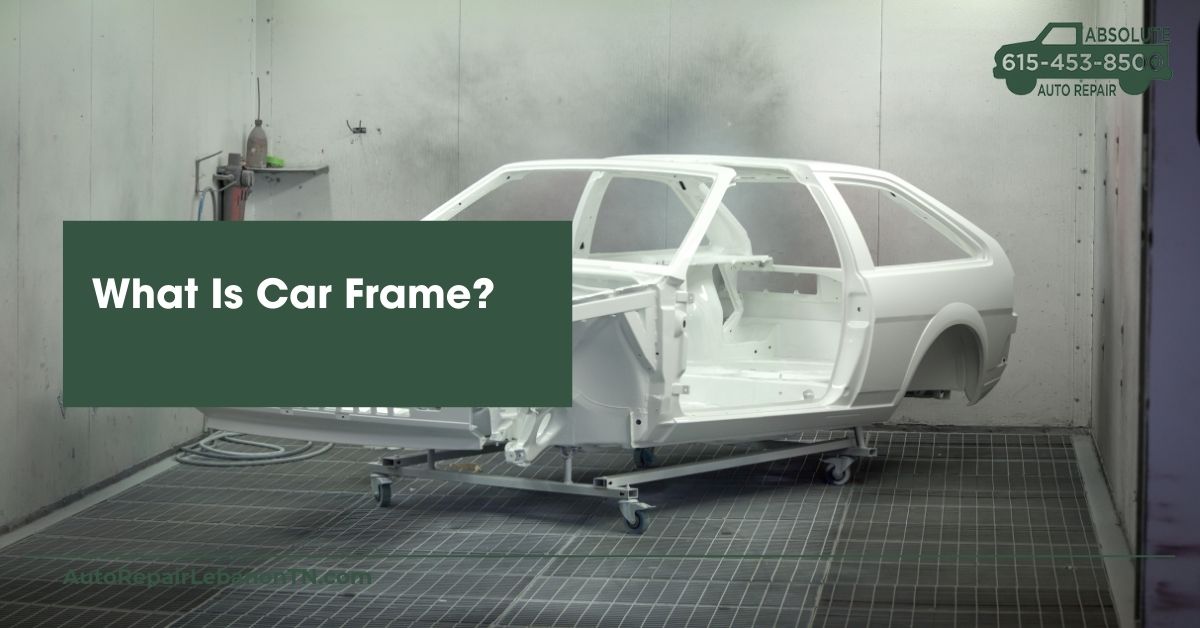

What Is a Car Frame: Definition and Purpose
A car frame forms the structural backbone of a vehicle, supporting all other components and providing the foundation upon which everything else is built. This critical skeleton gives the vehicle its shape and strength while creating mounting points for the engine, transmission, suspension, and body panels. Car frames distribute the vehicle’s weight evenly and absorb energy during collisions, playing a vital role in passenger safety.
The primary purpose of a car frame is to maintain structural integrity under various driving conditions. It’s designed to withstand torsional forces when handling uneven terrain and provide resistance against bending during acceleration, braking, and cornering. Modern car frames are engineered to include strategic crumple zones that collapse in a controlled manner during impacts, redirecting crash energy away from the passenger compartment.
Car frames also serve as the central attachment point for all major vehicle systems. The engine, transmission, suspension components, and interior elements all connect directly to the frame using specialized mounts and brackets. This integrated design ensures that forces from the road surface, powertrain, and external impacts are properly managed throughout the entire vehicle structure.
Types of Car Frames

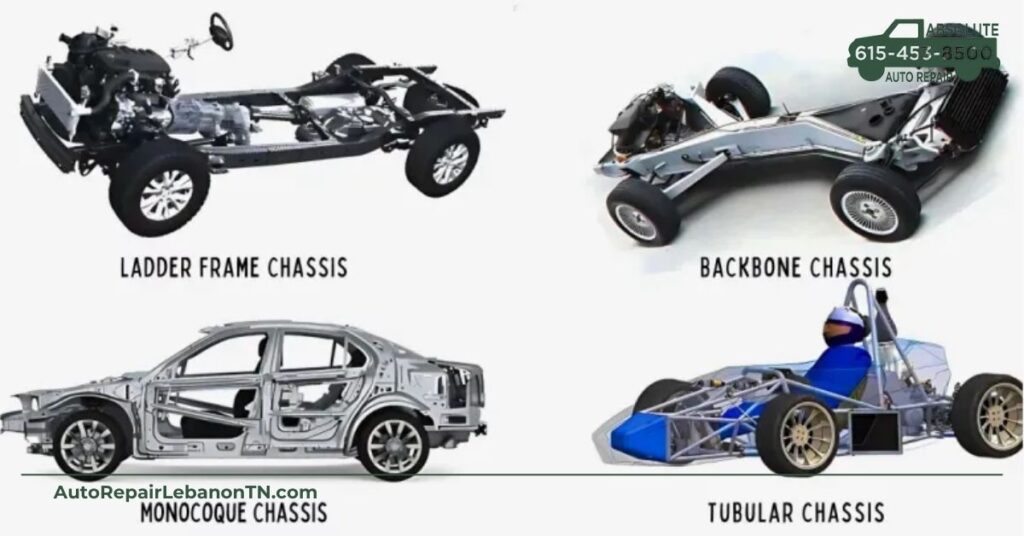

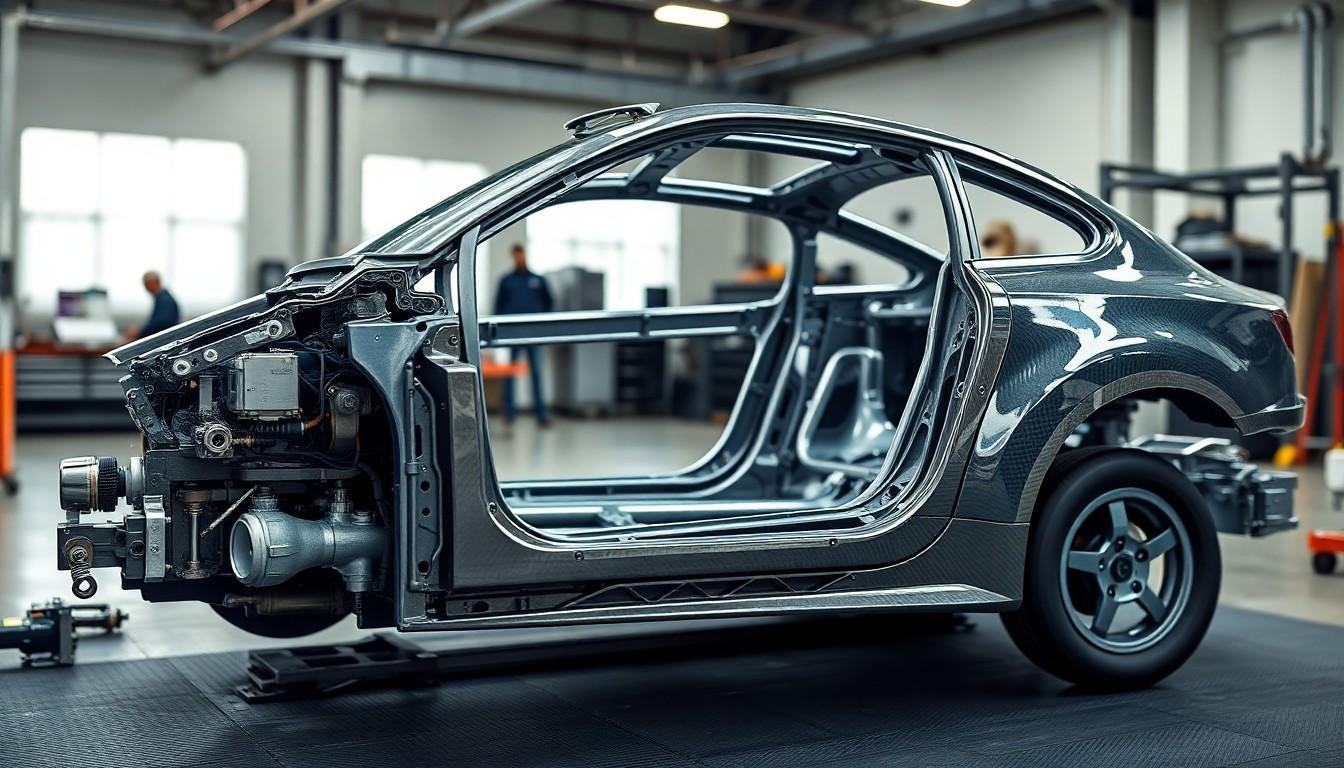

Car frames come in several distinct designs, each with unique characteristics that impact vehicle performance, safety, and functionality. The four primary types of car frames include ladder frames, unibody designs, space frames, and backbone frames.
Ladder Frame
Ladder frames feature two parallel rails connected by cross-members, resembling a ladder in structure. This conventional design provides exceptional strength and durability, making it ideal for trucks, trailers, and other heavy-duty vehicles. Ladder frames offer excellent structural integrity and are relatively simple to construct, which contributes to their widespread use in commercial vehicles. The main drawbacks include important weight, poor torsional rigidity, and inefficiency for lightweight passenger vehicles.

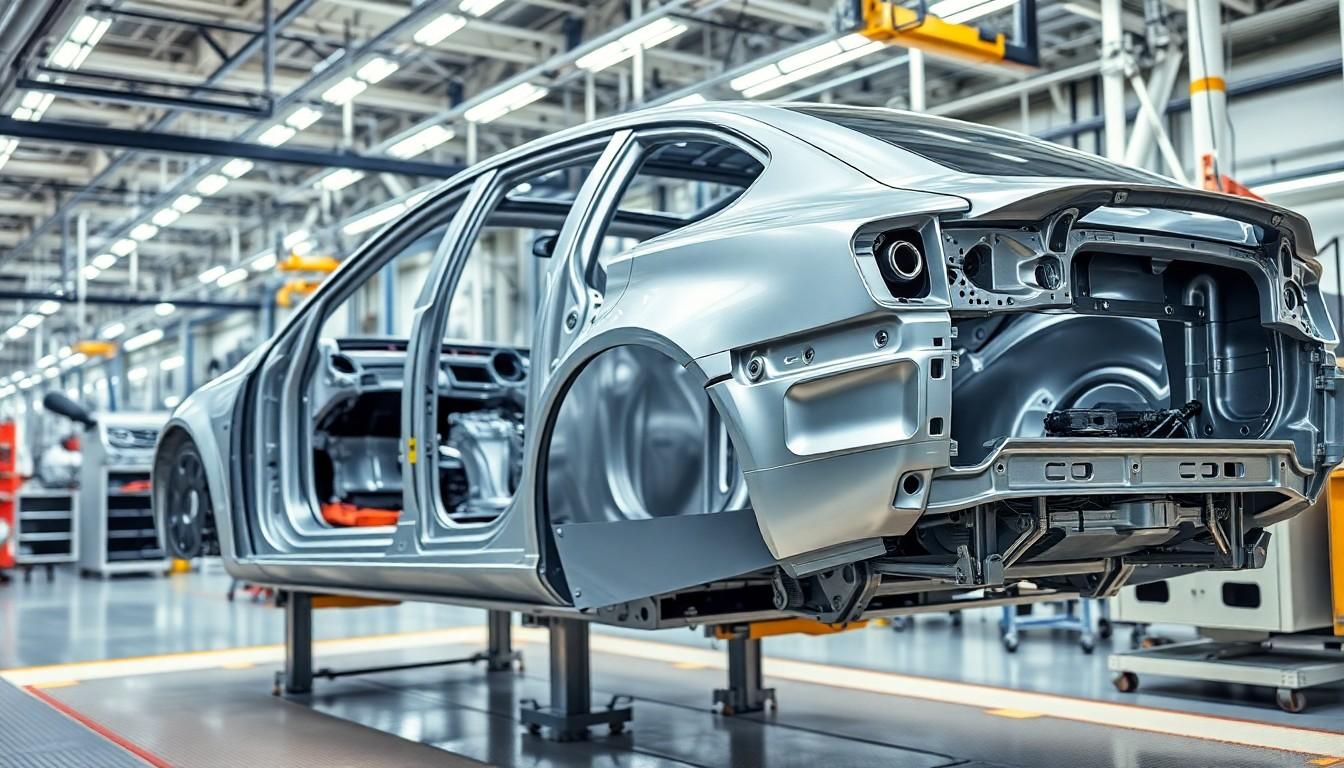

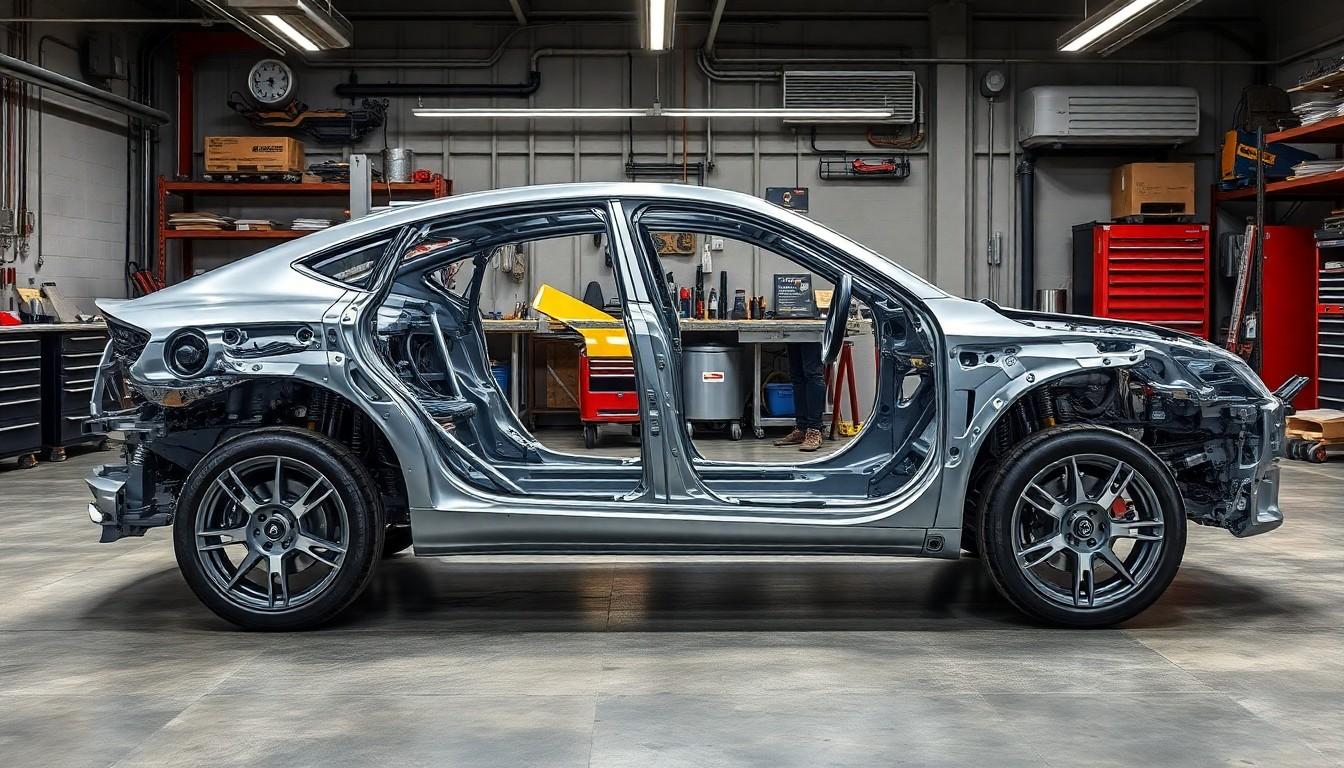

Unibody (Monocoque) Frame
Unibody frames integrate the body and chassis into a single cohesive unit, representing the most common design in modern passenger vehicles. Found in most sedans, hatchbacks, and SUVs, this construction offers superior torsional rigidity and crash protection by distributing impact forces throughout the entire structure. Unibody designs enhance vehicle durability while reducing overall weight compared to ladder frames. The integrated construction poses challenges for repairs after accidents, as damage often affects both structural and cosmetic components simultaneously.
Space Frame
Space frames consist of an interconnected network of tubes or struts that create a lightweight yet incredibly strong skeletal structure. This design achieves an exceptional strength-to-weight ratio, making it particularly valuable for high-performance and racing vehicles. Sports cars frequently use space frames to maximize performance while maintaining structural integrity during high-speed maneuvers. The complex construction requires specialized manufacturing techniques, limiting its application in mass-market vehicles.
Backbone Frame
Backbone frames center around a strong central tube or beam running longitudinally through the vehicle. This minimalist design offers good longitudinal strength in a compact, lightweight package suitable for smaller vehicles with exact design requirements. Vehicles with backbone frames benefit from simplified construction and adequate structural support without the complexity of other frame types. Though less common in contemporary vehicles, backbone frames remain relevant in specialized applications where their unique properties address exact engineering challenges.
Evolution of Car Frame Design
Car frame design has undergone remarkable transformations throughout automotive history, adapting to technological advances and changing safety requirements. The evolution reflects shifts in manufacturing capabilities, material science, and engineering priorities aimed at creating safer, more efficient vehicles.
Early Wood Frames to Modern Materials
The automotive industry’s earliest frames utilized wood as the primary structural material due to its lightweight properties and construction simplicity. These wooden frameworks, while innovative for their time, suffered from important durability issues and couldn’t provide adequate structural integrity for evolving vehicle designs. As manufacturing capabilities advanced, steel replaced wood, offering superior strength and longevity.
Steel frames emerged in several distinctive configurations:
- Ladder frames feature two parallel rails connected by cross-members, creating a structure resembling a ladder. These robust designs continue to serve in trucks and off-road vehicles where strength takes priority over weight considerations.
- Backbone tube frames employ a central structural tube that supports all vehicle components, offering a streamlined design approach.
- X-frames use an X-shaped configuration to enhance structural rigidity across the vehicle’s undercarriage.
- Perimeter frames completely encircle the vehicle’s body, providing comprehensive protection and enhanced structural support.
The modern era introduced revolutionary frame designs, most notably the monocoque chassis or unibody construction. This integrated approach combines the frame and body into a unified structure, delivering exceptional strength while reducing weight. Most contemporary passenger vehicles—including sedans, SUVs, and crossovers—employ monocoque designs for their superior crash protection and efficiency compared to traditional body-on-frame configurations.
Advanced materials like aluminum and high-strength steel alloys now complement these designs, further improving the strength-to-weight ratio of modern vehicles.
Impact of Safety Regulations
Safety regulations have fundamentally shaped the evolution of car frame design, pushing manufacturers to create structures that protect occupants more effectively. Modern frames incorporate sophisticated energy absorption systems that manage impact forces during collisions.
The monocoque chassis exemplifies this safety-focused evolution, with its unified structure distributing crash energy throughout the vehicle rather than concentrating it at impact points. This design philosophy significantly improves passenger protection compared to earlier frame configurations.
Regulatory requirements for structural integrity have led to more robust frame designs that maintain cabin space during various crash scenarios. Manufacturers now extensively test frames under multiple impact conditions to ensure they meet or exceed safety standards.
The balance between safety and efficiency has prompted the adoption of innovative materials that maintain structural strength while reducing vehicle weight. Advanced high-strength steels, aluminum components, and composite materials allow manufacturers to create frames that protect occupants without compromising fuel economy or performance.
Car Frame Materials
Car frame materials directly impact a vehicle’s performance, durability, and weight. The automotive industry uses several primary materials for constructing frames, each offering distinct advantages depending on the vehicle type and intended purpose.
Steel Frames
Steel frames dominate the automotive industry due to their exceptional strength and cost-effectiveness. These frames typically consist of longitudinal beams (frame rails) connected by transverse cross-members that form a robust structural foundation. Many manufacturers prefer steel for both traditional body-on-frame designs and modern unitized body constructions because of its durability and relative affordability. Steel’s malleability also allows engineers to design complex structural components that effectively absorb impact energy during collisions, improving passenger safety.
Aluminum Frames
Aluminum frames provide important weight reduction advantages while maintaining structural integrity. These frames weigh approximately 40% less than comparable steel structures, improving fuel efficiency and vehicle performance through better power-to-weight ratios. Luxury and high-performance vehicles often feature aluminum frames even though their higher production costs. The material’s natural corrosion resistance offers an additional benefit for longevity, particularly in harsh weather conditions. Ford’s F-150 truck demonstrates the practical application of aluminum frames in mass-produced vehicles.
Carbon Fiber and Composite Materials
Carbon fiber and composite materials represent the cutting edge of frame technology with unprecedented strength-to-weight ratios. These advanced materials deliver weight reductions of up to 60% compared to steel while maintaining or even improving structural rigidity. Sports cars and premium electric vehicles increasingly incorporate carbon fiber frames to maximize performance and efficiency. The manufacturing process involves layering carbon fiber sheets with epoxy resins under precise conditions, creating exceptionally strong structures. Even though their performance advantages, the complex production methods and high material costs currently limit widespread adoption to specialty and high-end vehicles.
How Car Frames Affect Vehicle Performance
A car frame’s design and structure significantly impact every aspect of a vehicle’s performance. From safety features to handling characteristics, the frame serves as the foundation that determines how a car behaves in various driving scenarios and crash situations.
Safety and Crash Protection
Car frames form the primary defense system during collisions, absorbing and redistributing impact forces to protect occupants. During accidents, a properly designed frame crumples in controlled zones to absorb crash energy rather than transferring it to passengers. Modern frames incorporate strategic reinforcements at critical points to maintain cabin integrity while allowing peripheral areas to deform. This structural engineering approach creates a safety cell around occupants, dramatically reducing injury risks compared to older frame designs. Many contemporary vehicles feature high-strength steel components in exact frame sections to enhance crash protection without adding excessive weight.
Handling and Driving Dynamics
The rigidity and design of a car frame directly influence how a vehicle responds to driver inputs and road conditions. Cars with stiffer frames exhibit more precise handling characteristics because they resist flexing during cornering, acceleration, and braking. Frame stiffness ensures that suspension components operate as intended since they maintain proper geometric relationships even under stress. Torsional rigidity—a frame’s resistance to twisting forces—plays a particularly important role in cornering stability and steering feedback. Performance vehicles often feature additional frame bracing or specialized designs to enhance these qualities, creating a more responsive driving experience through improved road feel and directional stability.
Weight Distribution and Fuel Efficiency
Frame design significantly affects a vehicle’s weight distribution, which in turn impacts both performance and efficiency. Lightweight frame materials like aluminum and high-strength steel reduce overall vehicle mass while maintaining structural integrity. A vehicle with properly balanced weight distribution handles more predictably and puts less strain on mechanical components. Modern unibody frames typically offer better weight distribution than traditional body-on-frame designs, contributing to improved fuel economy. Manufacturers now focus on strategic material placement within frames—using stronger, lighter materials only where needed—to optimize the strength-to-weight ratio. This targeted approach has helped reduce vehicle weight by hundreds of pounds in some models, translating to meaningful improvements in acceleration, braking distance, and fuel economy without compromising safety.
Common Car Frame Issues and Maintenance
Major Frame Problems
Car frames face several critical issues that can compromise vehicle safety and structural integrity. Rust and corrosion represent the most prevalent problems, especially in areas regularly exposed to moisture and road salt. These destructive processes gradually weaken the frame structure, potentially leading to catastrophic failure during normal driving conditions. Collision damage presents another serious concern, as even minor accidents can create hidden frame issues that affect alignment and overall vehicle stability. Regular wear from rough road conditions causes frames to experience stress fatigue over time, resulting in warping or cracking in crucial structural components. Excessive weight loading puts undue pressure on frames when vehicles carry more than their designed capacity, straining the metal beyond its engineering limits.
Effective Maintenance Strategies
Regular inspections form the cornerstone of proper frame maintenance, particularly for vehicles operated in harsh environments. A comprehensive examination by a qualified technician can identify early signs of rust, structural weakening, or misalignment before they become severe problems. Post-accident assessments are essential regardless of collision severity, as frame damage often remains invisible to the untrained eye yet significantly impacts vehicle performance and safety. Adhering to manufacturer weight guidelines prevents unnecessary stress on the frame structure, ensuring its longevity and proper function throughout the vehicle’s lifespan. Protective treatments such as specialized coatings or rust inhibitors provide an additional defense layer against corrosion, especially for vehicles in coastal or winter driving regions where exposure to salt accelerates metal deterioration.
Conclusion
The car frame stands as the unsung hero of vehicle engineering providing the foundation that keeps us safe on the road. From traditional ladder designs to cutting-edge unibody structures modern frames balance strength weight and safety with remarkable precision.
Understanding your vehicle’s frame can help you make informed decisions about maintenance repairs and even future purchases. As automotive technology continues to advance we’re seeing frames that are lighter stronger and more sophisticated than ever before.
Whether you drive a rugged truck with a ladder frame or a sleek sedan with a unibody design the frame beneath you plays a crucial role in your driving experience and safety. Regular inspection and proper maintenance will ensure your vehicle’s structural integrity for years to come.
Frequently Asked Questions
What is a car frame and why is it important?
A car frame is the structural backbone of a vehicle that provides shape, strength, and mounting points for components like the engine and seats. It’s crucial because it distributes weight evenly, absorbs crash energy, and maintains the vehicle’s structural integrity during various driving conditions. Without a properly functioning frame, a vehicle’s safety, handling, and overall performance would be significantly compromised.
What are the main types of car frames?
The main types include ladder frames (used in trucks and SUVs for strength), unibody/monocoque designs (common in passenger cars, combining body and frame), space frames (lightweight structures for performance vehicles), and backbone frames (featuring a central tube design for smaller cars). Each type offers different advantages in terms of strength, weight, manufacturing complexity, and application-specific performance.
How have car frames evolved over time?
Car frames evolved from wooden structures to steel ladder frames, then to various configurations like X-frames and perimeter frames. Modern vehicles predominantly use monocoque/unibody construction that integrates the body and frame into a single unit. Advancements in materials (from basic steel to aluminum and carbon fiber) and safety engineering have driven this evolution, resulting in stronger yet lighter frames with better crash protection.
What materials are commonly used in car frames?
Steel remains the most common material due to its strength and cost-effectiveness. Aluminum is increasingly popular for its lightweight properties that improve fuel efficiency. High-strength steel alloys offer enhanced durability while reducing weight. Premium and performance vehicles often incorporate carbon fiber and composite materials for their exceptional strength-to-weight ratio, though at higher production costs.
How does the car frame affect vehicle performance?
The frame directly influences handling, ride quality, and safety. A rigid frame improves cornering and stability, while frame design affects weight distribution and center of gravity. In collisions, the frame absorbs and redistributes impact forces through crumple zones while maintaining cabin integrity. Lighter frames contribute to better fuel efficiency and reduced strain on mechanical components like suspension and brakes.
What are common car frame problems to watch for?
The most common issues include rust and corrosion (especially in areas using road salt), collision damage that compromises structural integrity, stress fatigue from rough roads or off-roading, and damage from excessive weight loading. These problems can reduce safety protection, affect alignment, create unusual noises, and lead to uneven tire wear or handling problems.
How should car frames be maintained?
Maintain your car frame by scheduling regular professional inspections, especially underneath the vehicle. After accidents, have the frame professionally assessed even if damage isn’t visible. Wash your vehicle regularly, particularly the undercarriage in winter, and consider applying rust-preventative coatings. Always follow manufacturer guidelines for weight limits, and promptly address any unusual noises or handling issues.
Can a damaged car frame be repaired?
Minor frame damage can often be repaired by specialized shops using hydraulic straightening equipment. However, severe damage may compromise the frame’s structural integrity permanently. Modern unibody repairs are complex and should only be performed by certified technicians using manufacturer-approved methods. Insurance companies may declare a vehicle totaled if frame repair costs exceed a certain percentage of the vehicle’s value.
